From IDs to [B,T,D]
Select an input position, follow its table row, then use B, T and D to locate one output number.
① Input IDs
2 sequences × 3 positions
IDs 0–3 are ordinary demo items, not the course special tokens.
② Read E[4,2]click row
Click a row to replace the selected input ID.

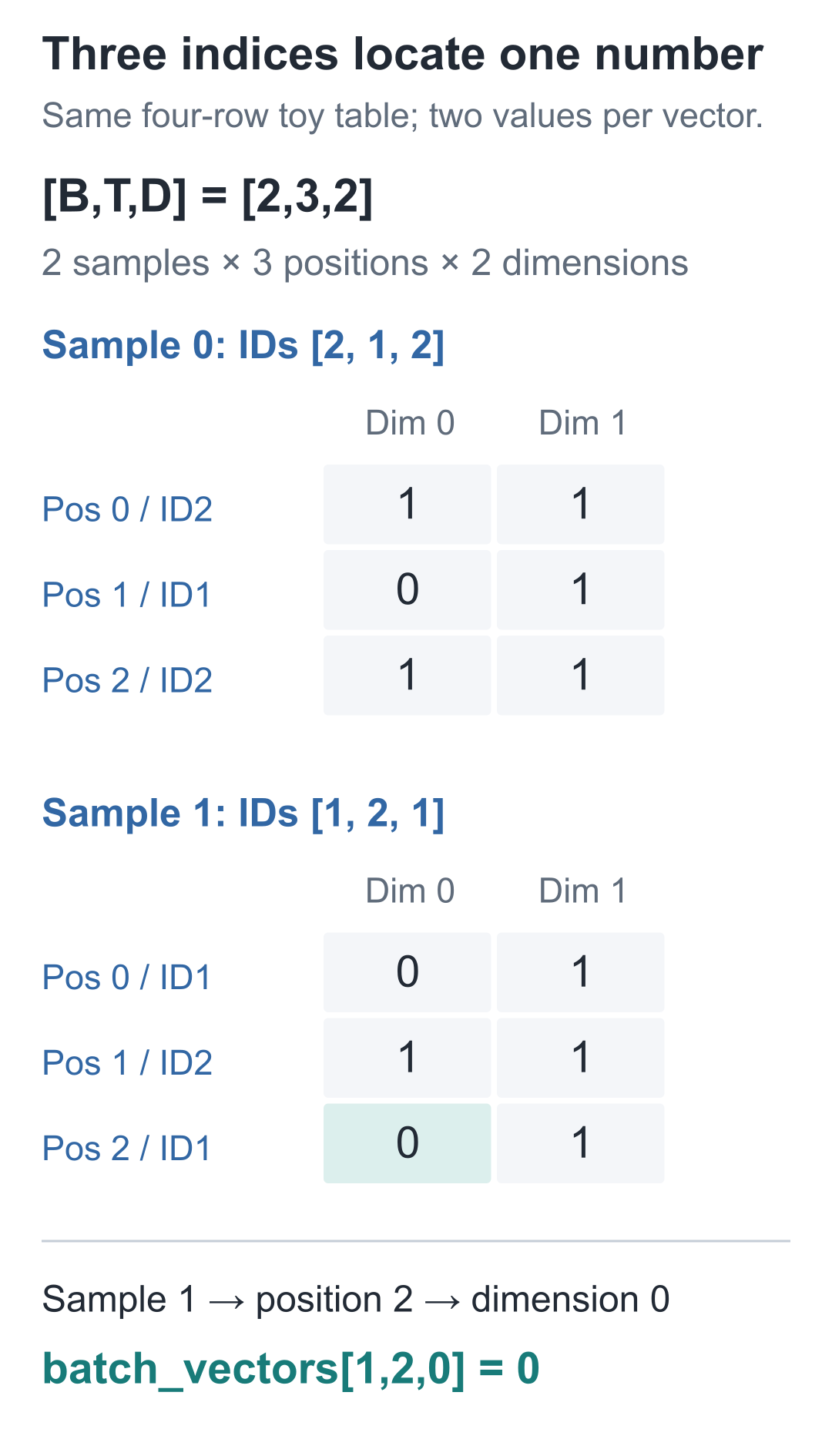

③ A three-axis tensor
[B,T,D] = [2,3,2]Axes select sample, position and feature; they are not semantic directions.
Check every value One cell = one number
Input IDs change; the parameter table stays fixed.
Arrow keys select a position/feature. PageUp / PageDown select a sample. Home resets the view.
Example, real vocabulary and static figure
Values come from the saved lesson 07 hand calculation. The initial sequences match the article; Reset restores them. Feature coordinates have no predefined semantic names.
IDs 0–3 are ordinary demo items, not the course special tokens.
Axes select sample, position and feature; they are not semantic directions.
Real course vocabulary: characters first get IDs
Click a character to check its ID in the real vocabulary.
These real IDs are separate from the four-item demo. The course model reads E[79,64]; this page does not invent those 64 parameter values.
